6ka Residual Current Circuit Breaker karịrị Nchekwa ugbu a RCBO

SONTUOEC bụ otu n'ime ndị na-ebubata / ndị na-emepụta ihe na China ọkachamara na mmepụta nke obere ngwa eletrik dị iche iche STRO1-40 RCBO, aha zuru ezu bụ Residual Current Circuit Breaker with Overcurrent Protection. Ọ bụ ngwaọrụ nchekwa eletriki nke na-ejikọta nchedo oke ibu, nchebe obere oge na nchebe ntanye, a na-ejikwa ya na usoro eletriki na ebe obibi, azụmahịa na ụlọ ọrụ mmepụta ihe iji hụ na nchekwa onwe onye na ọrụ nchekwa nke ngwá ọrụ.STRO7-40 RCBO bụ ihe dị mkpa nchekwa nchekwa eletrik na-ebufe ibu, obere sekit na nchebe ntapu. Site n'ịghọta ụkpụrụ ọrụ ya, njirimara, ọnọdụ ngwa, na nhọrọ na ụzọ nrụnye, ị nwere ike iji ma nọgide na-enwe STRO7-40 RCBO iji hụ na ọrụ nchekwa nke usoro eletrik.

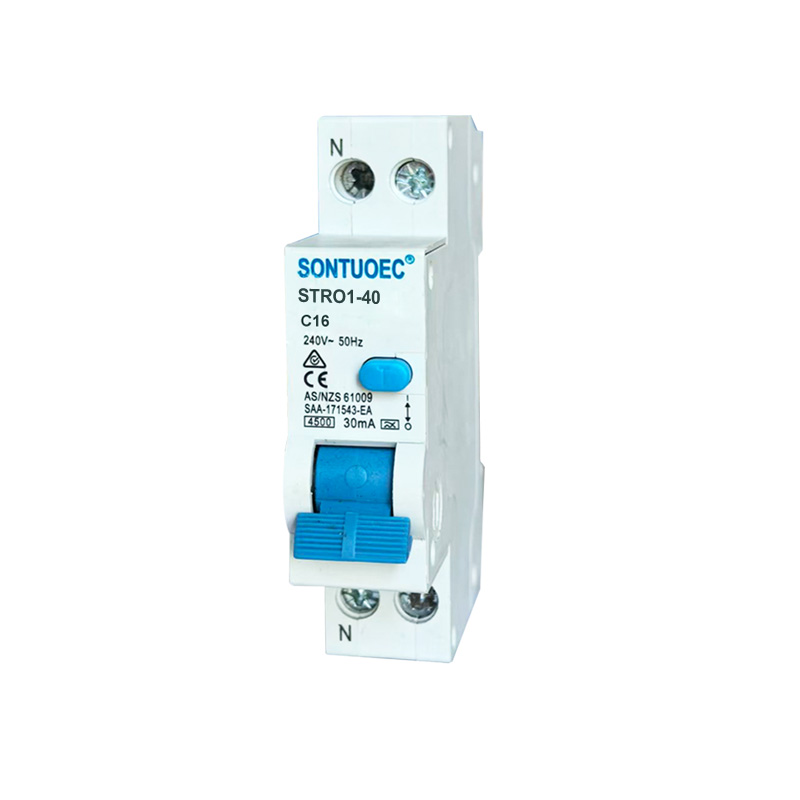

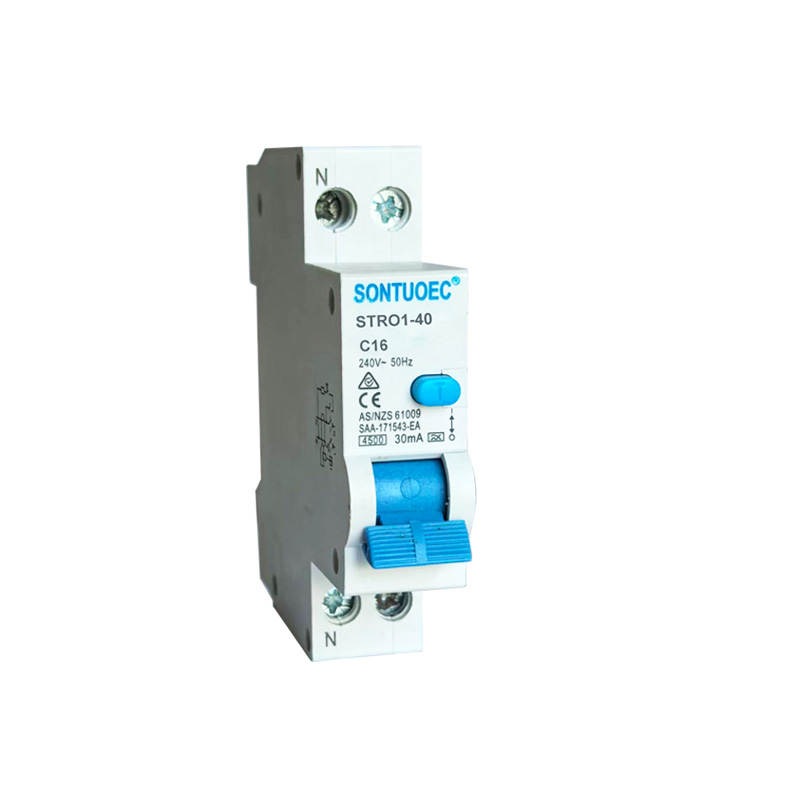

Nlereanya:STRO1-40

Zipu ajụjụ

Nkọwa ngwaahịa

Nkọwapụta:

Sandard			IEC / EN 61009-1
Eletriki	Ụdị (ụdị ebili mmiri nke ntapu nke ụwa ghọtara)		Ụdị eletrọnịkị
atụmatụ	Enyere aha ugbu a In	A	A,AC
	Osisi	P	1P+N
	Egosiri voltaji	V	AC 230
	Enyere aha ugbu a:		6,10,16,20,25,32,40A
	Egotara ezi uche I△n	A	0.01,0.03,0.1,0.3,0.5
	Voltage mkpuchi mkpuchi Ui	V	250
	Enyere mpụta ime na	A	500
	agbaji ike I△m	A	500
	Mkpirisi okirikiri ugbu a I△c	A	45,006,000
	Ugboro ugboro	Hz	50/60
	ogo mmetọ		2
Mechanical	Ndụ eletrik	t	4000
atụmatụ	Ndụ mechanical	t	10000
	ogo nchedo		IP20
	Ọnọdụ okpomọkụ	ºC	-25-40
	(na nkezi kwa ụbọchị ≤35ºC)	ºC	-25-40
	Ọnọdụ nchekwa	ºC	-25-70
Nwụnye	Ụdị njikọ ọnụ		Cable/Ụ-ụdị ụgbọ ala ụgbọ ala/pin-ụdị bọsbar
	Nha ọdụ elu/ala maka eriri	mm2	25
	Nha ọdụ elu/ala maka eriri	AWG	18-5
	Nha njedebe n'elu/n'ala maka ụgbọ ala ụgbọ ala	mm2	25
	Nha njedebe n'elu/n'ala maka ụgbọ ala ụgbọ ala	AWG	18-3
	Ịkwanye		Na DIN okporo ígwè EN 60715(35mm) site na ngwa ngwa mkpachị ngwaọrụ
	Njikọ		Site na elu na ala

Isi ọrụ nke STRO1-40 RCBO

Nchekwa oke ibu: Mgbe ihe dị ugbu a na sekit karịrị ọnụ ahịa nke STRO1-40 RCBO, ọ ga-ewepụ sekit na-akpaghị aka n'ime oge a kara aka iji gbochie sekit na akụrụngwa ka ọ ghara ikpo ọkụ, si otú a na-ezere ọkụ na mmebi.

Mkpuchi mkpuchi dị mkpirikpi: Mgbe obere oge dị mkpirikpi na-eme na sekit, STRO1-40 RCBO ga-ewepụ ngwa ngwa ngwa ngwa iji gbochie mkpụmkpụ nke dị ugbu a site na imebi ihe dị egwu na sekit na akụrụngwa.

Nchekwa ntanye: STRO1-40 RCBO nwere ike ịchọpụta ihe fọdụrụ ugbu a (ya bụ, leakage current) na sekit. Mgbe ihe fọdụrụ ugbu a gafere ọnụ ụzọ echere, STRO1-40 RCBO ga-ebipụ sekit n'ime obere oge iji gbochie ihe mberede eletrik na ọkụ eletrik.

Ụkpụrụ nke ọrụ STRO1-40 RCBO

STRO1-40 RCBO nwere ihe nchọpụta njem magnetik nke dị n'ime (maka oke ibu na nchedo sekit dị mkpirikpi) yana ihe nchọpụta ihe fọdụrụ ugbu a (maka nchebe ntanye). Mgbe ihe dị ugbu a ma ọ bụ ihe fọdụrụ na sekit ahụ na-adịghị mma, onye na-eme ihe kwekọrọ na-eme ka usoro nkwụsị nke STRO7-40 RCBO na-eme ka ọ dị ngwa ngwa wepụ sekit ahụ.

1.Thermal Magnetic Tripper: Ọ na-eji ọkụ na magnetik eme ihe mgbe nke ugbu a na-agafe na onye nduzi iji kpalite tripping. Mgbe ihe dị ugbu a dị oke elu, onye na-eduzi ahụ na-ekpo ọkụ ma na-emepụta oghere magnetik, na-eme ka bimetal dị n'ime ihe na-ekpo ọkụ magnetik na-ehulata ma ọ bụ magnet na-adọta isi ígwè, si otú ahụ na-ebute usoro nkwụsị.

2.Residual ugbu a detector: Ọ utilizes a efu usoro nke ugbu a transformer chọpụta ihe fọdụrụ ugbu a na sekit. Mgbe ihe fọdụrụ ugbu a gafere n'ọnụ ụzọ edobere, ihe nchọta ihe fọdụrụ ugbu a ga-ezite mgbaama na usoro mgbagha ka ebipụ sekit ahụ.

Atụmatụ nke STRO1-40 RCBO

Ngwakọta ọtụtụ ọrụ: STRO1-40 RCBO na-ejikọta oke ibu, obere oge na ọrụ nchebe ntanye, na-eme ka nhazi na ntinye nke usoro eletrik dị mfe.

Mmetụta dị elu: STRO1-40 RCBO nwere ike ịchọpụta ngwa ngwa ma bepụ ihe ndị na-adịghị mma na nke fọdụrụ na sekit, na-enye nchebe a pụrụ ịdabere na ya.

Ọ dị mfe ịwụnye na ịnọgide na-enwe: STRO1-40 RCBO na-emekarị modularized maka nrụnye na nhazi dị mfe.

Nchekwa dị elu: STRO1-40 RCBOs na-anwale nke ọma ma kwadoro maka nchekwa dị elu na ntụkwasị obi iji hụ na arụ ọrụ nchekwa nke usoro eletriki.

Ihe ngosi ngwa nke STRO1-40 RCBO

A na-eji STRO1-40 RCBOs na sistemu eletriki na mpaghara obibi, azụmahịa na ụlọ ọrụ mmepụta ihe, ọkachasị ndị na-achọ ibufe n'otu oge, obere sekit na nchebe ntapu ụwa. A na-etinyekarị ha na igbe nkesa, bọọdụ mgba ọkụ ma ọ bụ ụlọ njikwa iji chebe sekit na akụrụngwa site na mmebi nke ugbu a na voltaji na-adịghị mma na-akpata, yana igbochi ọkụ eletrik.
