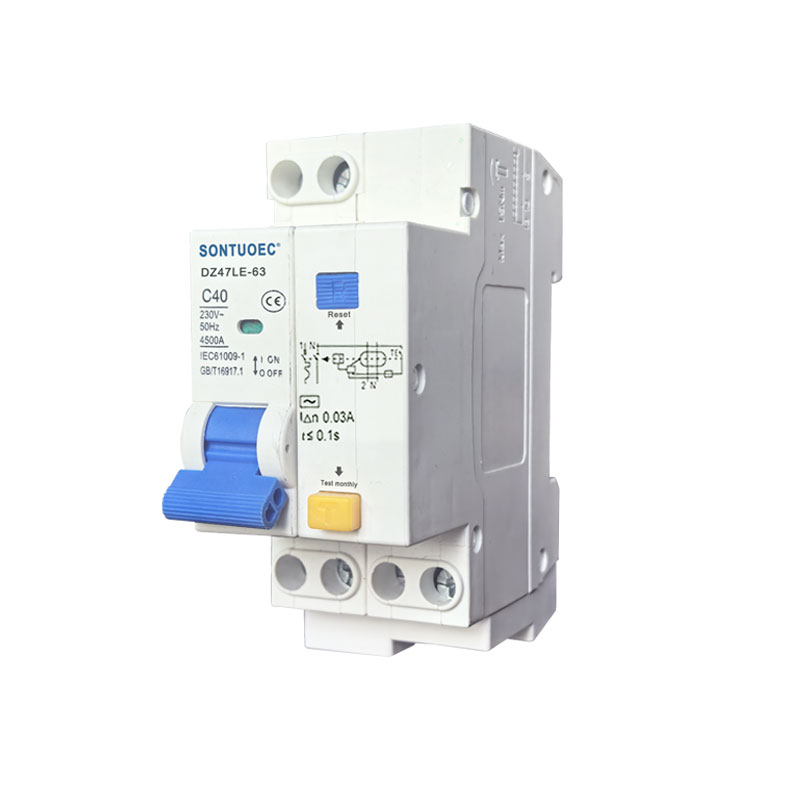

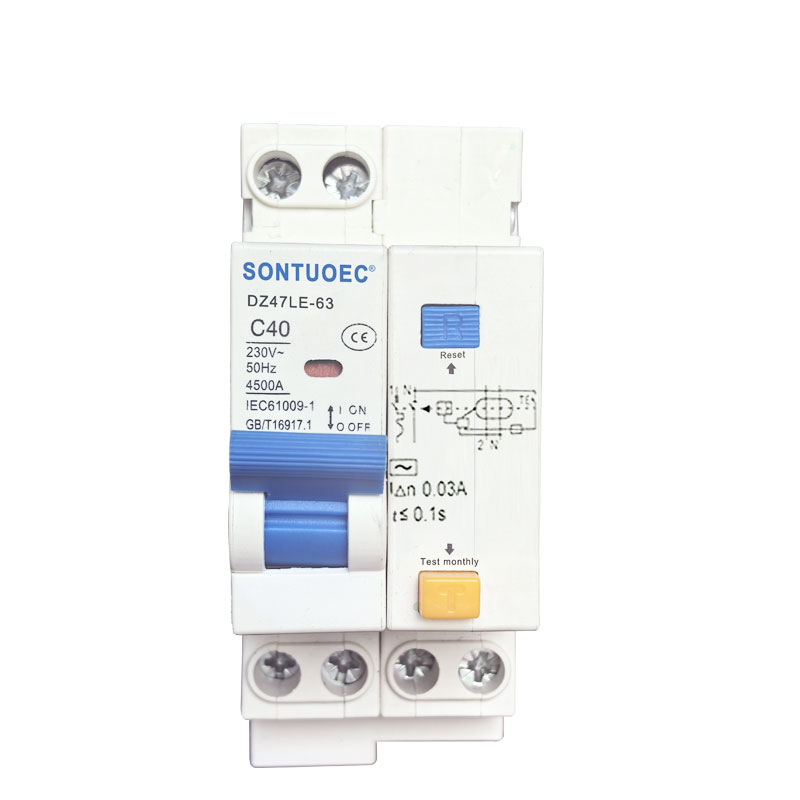

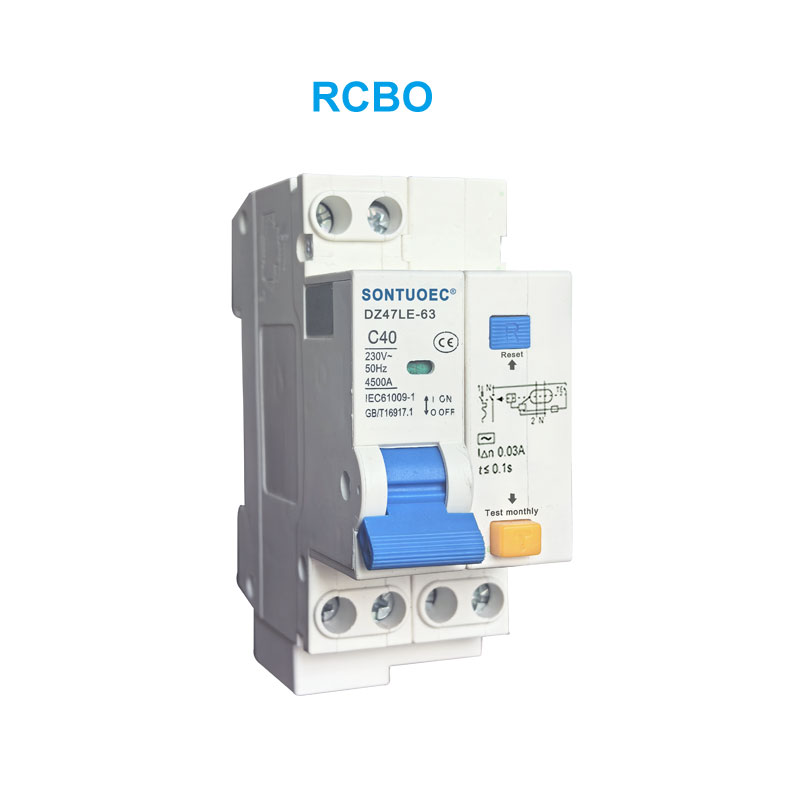

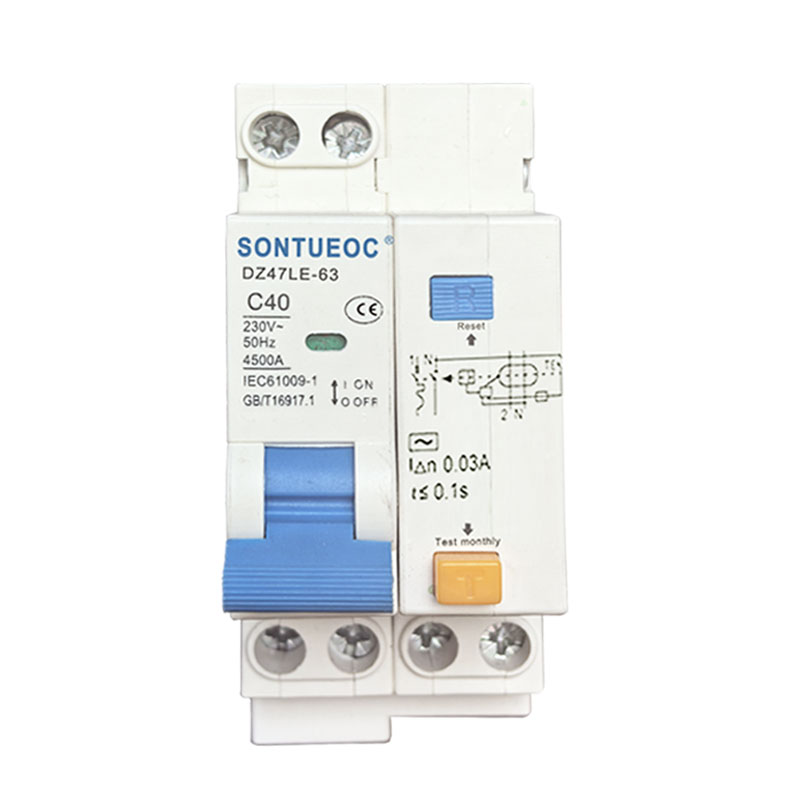

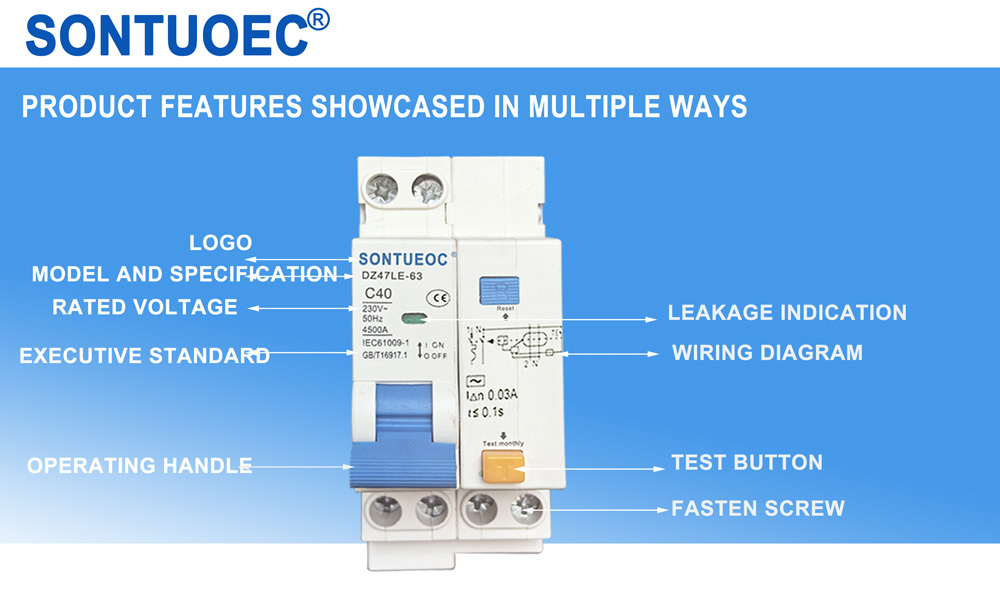

Dz47le-63 RCBO usoro ntapu nke mgbawa sekit dị ugbu a

SONTUOEC bụ otu n'ime ndị na-ebubata/ndị na-emepụta ihe nke China bụ ọkachamara na mmepụta nke obere ngwa eletrik dị iche iche.DZ47LE dabara na a a AC 50/60Hz pụtara voltaji 230V maka otu pole abụ wa , 2 pole ma ọ bụ 430V. 4 osisi na pụtara ugbu a ruo 63A. Ọ nwere ike ichekwa akara na moto na n'ebufe na okuku sagharị Ọ nwekwara ji ma ka mgbanwe ahịrị na malite moto na-adịghị adịkarị. Ọ dabara na ụkpụrụ IEC61009.1.

Nlereanya:DZ47LE-63

Zipu ajụjụ

Nkọwa ngwaahịa

Nka nka:

Ogo voltaji(V)	Egobere nke Case Inm(A) ugbu a	Osisi	Neutra	Enyere aha ugbu aIn(A)	Enyere ikike imebi sekit dị mkpụmkpụ Icu(KA)		Enyere aha nhụfu dị ugbu a na-agbaji ugbu a	Enyere aha ugbu a anaghị agbaji ugbu a (mA)
Ogo voltaji(V)	Egobere nke Case Inm(A) ugbu a	Osisi	Linel	Enyere aha ugbu aIn(A)	Na-agbaji Ike Icu(KA)	COS	(mA)	Enyere aha ugbu a anaghị agbaji ugbu a (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15,25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

DZ47LE Residual Saịktị Breaker na-arụ ọrụ ugbu a yana nchebe karịrị ugbu a (Electronic):

1. Ngwa

Ndị ọrụ na nchekwa ọkụ

Nchedo eriri USB na ahịrị megide oke ibu na mkpirisi okirikiri

2. Iwu izugbe maka ịhọrọ RCBO:

a. Enyere ihe fọdụrụ ugbu a na-arụ ọrụ

Na ≤ 30 mA: nchebe ọzọ n'ihe gbasara kọntaktị ozugbo Na ≤300 mA: nchebe ọkụ na-egbochi ọkụ n'ihe gbasara ikuku ọjọọ.

b.Klas na-eme njem

Klas AC - A na-ahụta ntugharị maka sinusoidal, mmiri na-atụgharị, ma a na-etinye ha ngwa ngwa ma ọ bụ na-abawanye nwayọ.

c. Ọkpụkpụ ụzọ

C curve (5-10 In) nchebe na njikwa nke sekit megide oke ibu na obere okirikiri; nchebe maka ibu na-eguzogide na inductive na obere inrush ugbu a.

D curve (10-14 In) nchebe na njikwa nke sekit megide oke ibu na obere okirikiri; Nchedo maka sekit nke na-enye ibu nwere oke inrush dị ugbu a na mmechi sekit (transformers LV/LV, oriọna mgbawa).
