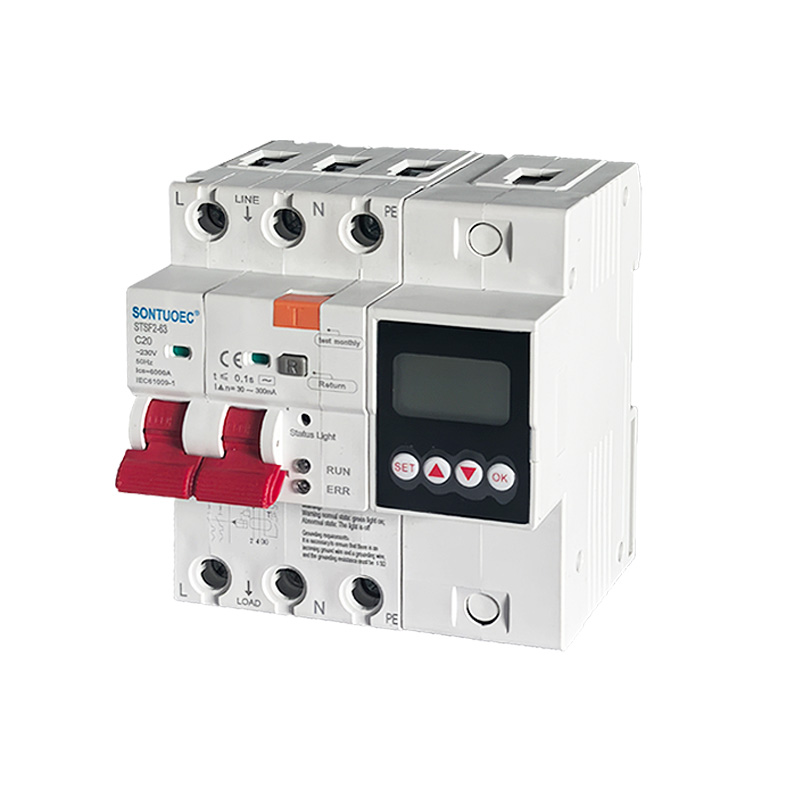

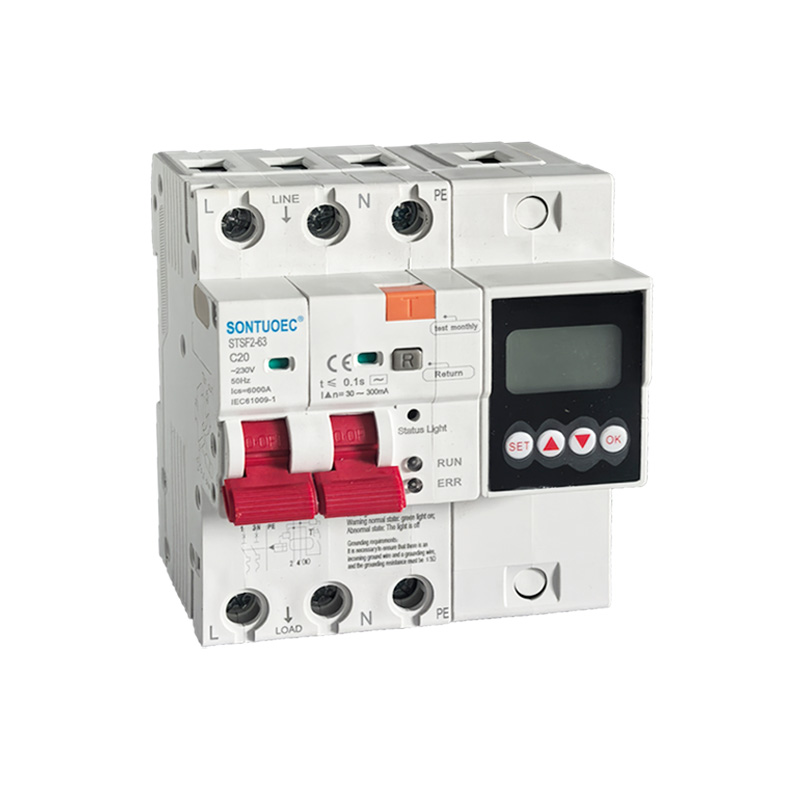

Nmikpu nwere ọgụgụ isi mgbochi ihe mkpuchi ujo ọkụ eletrik 220V sekit sekit ikuku

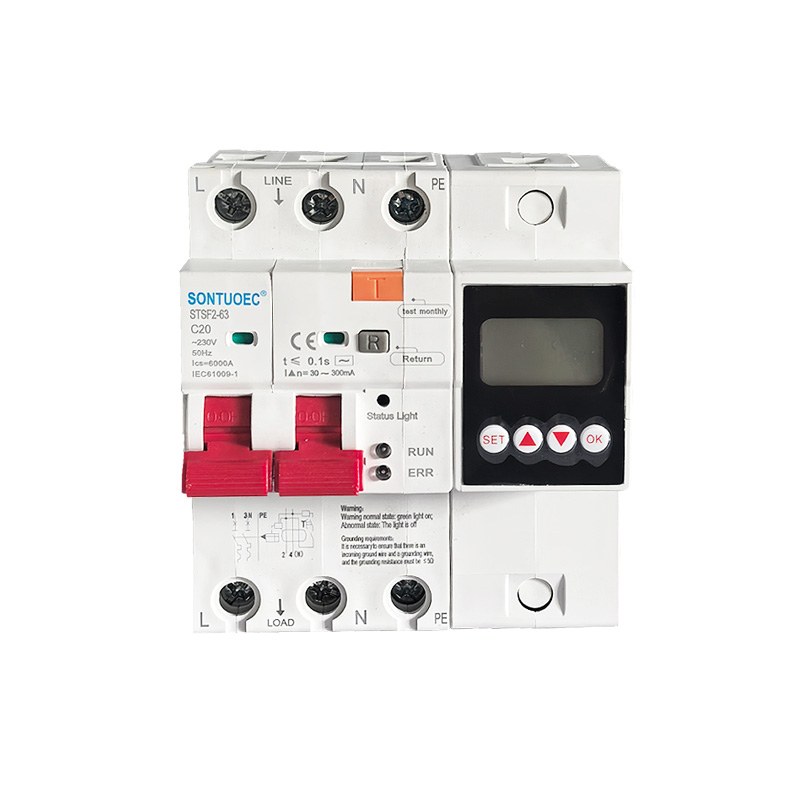

STSF2-63/100 100A 2p 4p Multifunctional RCBO kwesịrị ekwesị maka AC 50/60Hz, gosiri na sekit nwere voltaji nke 230V-400V na a gosiri ugbu a nke 100A, mgbe mmadụ na-electrcuted ma ọ bụ ike grid leaks. Mgbe ntapu, oke voltaji, na obere voltaji rutere n'ụkpụrụ edobere, ihe mgbaji sekit dị ugbu a nwere ike ịrụ ọrụ ngwa ngwa n'ime obere oge dị mkpụmkpụ ngwa ngwa bepụ ọkụ. Mgbe ọnọdụ nleba anya nke ihe nbibi sekit dị ugbu a rutere n'uru a na-edozi, anaghị ejikọta waya ala nlekota. Mgbe ejikọtara ya, ngwaahịa a na-ebunye ụda mkpu iji kpuchido nchekwa nke ndị ọrụ na ngwa eletriki, ma nwee ike ịzenarị Gbochie mmebi nke akụrụngwa kpatara oke voltaji na grid ọkụ. Nwere oke ibu, obere sekit, ntapu, oke voltaji n'okpuru voltaji na ọrụ nchekwa oke ọkụ nwekwara ike ịgbanye ma gbanyụọ ngwaọrụ eletrik obere oge n'okpuru ọnọdụ nkịtị. Igwe ọkụ na-enwu ọkụ, karịsịa maka usoro nkesa ọkụ ọkụ na ụlọ ọrụ mmepụta ihe. Ngwaahịa ahụ nwere obere olu, nhazi kọmpat, yana ọnụ ahịa dị mma karịa ngwaahịa ndị ọzọ yiri ya. O nwere ọdịdị mara mma, Ikike mgbawa dị elu na-eme ka ọ bụrụ nhọrọ dị mma maka nkesa ike ezinụlọ. Ngwaahịa a kwekọrọ n'ụkpụrụ GB/T 16917.1 na IEC 61009-1 wee nweta asambodo CE.

Nlereanya:STFS2-63

Zipu ajụjụ

Nkọwa ngwaahịa

NKWUO:

Eletriki atụmatụ	Ọkọlọtọ	Nkeji	IEC / EN 61009-1
	Ụdị		Ụdị eletrọnịkị
	Ụdị (ụdị ebili mmiri nke ntapu nke ụwa ghọtara)		AC
	Njirimara ntọhapụ Thermo-magnetic		B,C,D
	Enyere ugbu a ln	A	6-100A(6,10,16,20,25,32,40,63;80,100A) na-agbanwe agbanwe
	Osisi	P	1P+N, 3P+N
	Egotara voltaji Ue	V	AC 230, 400 (nwere ike idozi)
	Enwere mmetụta uche I△n	A	30-300mA (30,100,300mA) na-agbanwe agbanwe
	Enyere mpụtara mpụta na ike imebi l△m	A	500
	Enyere ikike obere okirikiri Icn	A	6000
	Oge ezumike n'okpuru I△n	S	≤0.1
	Ugboro ugboro	Hz	50/60
	Enyere mkpali na-eguzogide voltaji (1.2/50)Uimp	V	4000
	Dielectric test voltaji na ind.Freq maka 1min	kV	2
	Voltage mkpuchi mkpuchi Ui	V	250
	ogo mmetọ		2
Other	N'elu / n'okpuru nchebe voltaji;	na	Nchekwa okpomọkụ ; Fire-alwarm na ndị ọzọ
Nrụ ọrụ igwe	Ndụ eletrik		4000
	Ndụ mechanical		10000
	Ihe ngosi mmejọ ugbu a		EE
	ogo nchedo		IP20
	Ọnọdụ okpomọkụ	ºC	-5 ~ + 40 (ngwa pụrụ iche biko rụtụ aka
	(na nkezi kwa ụbọchị ≤35ºC)	ºC	nkwụghachi ụgwọ okpomọkụ)
	Ọnọdụ nchekwa	ºC	-25-70
Nwụnye	Ụdị njikọ ọnụ		Cable/Pin-ụdị bọsbar/ ụdị ụgbọ ala U-ụdị ụgbọ ala

	Ogo njedebe n'elu / ala maka eriri	mm2	25
	Ogo njedebe n'elu / ala maka eriri	AWG	18-5
	Nha njedebe n'elu/n'ala maka ụgbọ ala ụgbọ ala	mm2	25
	Nha njedebe n'elu/n'ala maka ụgbọ ala ụgbọ ala	AWG	18-3
	Ịkwanye		Na DIN okporo ígwè EN 60715(35mm) site na ngwa ngwa mkpachị ngwaọrụ
	Njikọ		Site n'elu

Okpomọkụ ikuku gbara gburugburu:

1.The ambient ikuku okpomọkụ agaghị ala karịa -5 1C, ọ bụghị elu karịa +40 C, na kwa ụbọchị nkezi uru agaghị agafe +35 C.

2. Elu: Ebe dị elu nke ebe nrụnye agaghị agafe 2000m.

3.Atmospheric ọnọdụ

Ikuku dị ọcha, ma na oke okpomọkụ nke +40 ℃, iru mmiri nke ikuku adịghị elu karịa 50%. A na-ahapụ iru mmiri dị elu na obere okpomọkụ, dị ka na + 20 Celsius.

Iru mmiri dị n'akụkụ ekwesịghị gafere 90%. N'ihi condensation na-agafeghị oke oge ụfọdụ nke mgbanwe okpomọkụ na-akpata, ekwesịrị ịṅa ntị na ịme usoro kwesịrị ekwesị.

4. Otu nrụnye nrụnye ngalaba bụ lI na III

Ugbu a na ọnụ ọgụgụ nke okporo osisi

100A: Nke a na-egosi na RCBO bụ 100 amps. Ọnụ ọgụgụ dị ugbu a bụ uru kachasị elu nke ugbu a nke onye na-agbaji sekit nwere ike na-ebu na-aga n'ihu n'emeghị ka ikpo ọkụ ma ọ bụ mebie.

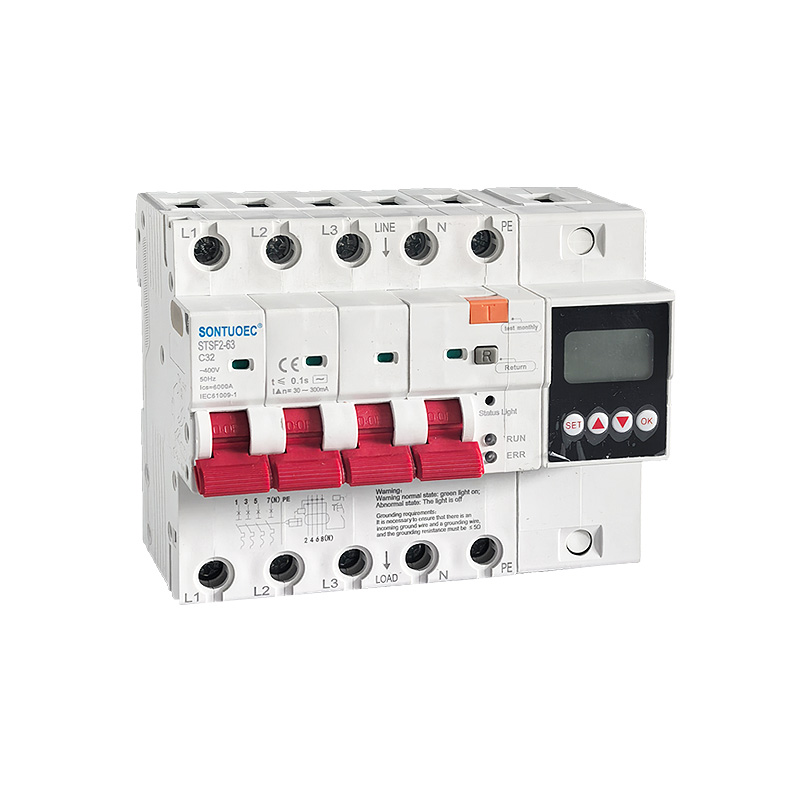

2p, 4p: "p" ebe a na-anọchi anya ọnụ ọgụgụ nke okporo osisi, ya bụ, ọnụ ọgụgụ nke sekit nke nwere ike ijikọ ihe nkwụsịtụ. 2p pụtara na enwere ike ijikọ eriri sekit na usoro sekit abụọ (na-abụkarị ọkụ na efu), ebe 4p pụtara na enwere ike ijikọ ya na usoro sekit anọ (na-abụkarị ọkụ na efu atọ).

Multifunctional

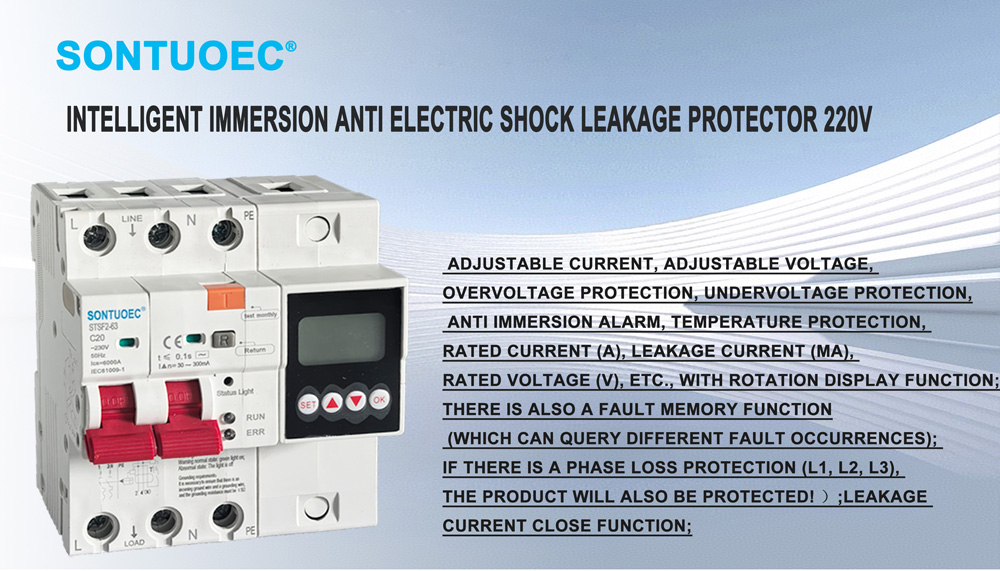

Multifunctional na-egosi na 100A 2p 4p Multifunctional RCBO nwere ọrụ nchebe dị iche iche. Na mgbakwunye na ibu ibu bụ isi na nchebe obere okirikiri, ọ nwekwara ike inye nchebe ntapu, nchebe n'okpuru voltaji, nchebe oke ọkụ, na ihe ndị ọzọ. Nchekwa okpomọkụ, Mkpu mmiri na-abanye, Mgbanwe ugbu a na voltaji. Nchedo ndị a na-enye ohere ka RCBO na-enye nchebe zuru oke maka sekit na akụrụngwa.

Ịdọ aka ná ntị!

Ịdọ aka ná ntị nkịtị steeti: ìhè akwụkwọ ndụ akwụkwọ ndụ na;

Ọnọdụ na-adịghị mma: ọkụ agbanyụrụ

Ntughari chọrọ:

Ọ dị mkpa iji hụ na e nwere waya ala na-abata na eriri ala, na nkwụsi ike nke ala ga-abụrịrị s 5Q!

Ọnọdụ ngwa

Ebe ọ bụ na RCBO nwere ọrụ nchebe dị iche iche, a na-ejikarị ya na sekit ndị na-achọ nchekwa onwe onye, dị ka sekit eletrik maka ọkụ, ike adịghị ike, na ngwa eletrik n'ụlọ na ebe ọha. A na-eji mmiri na mmiri mara ebe ndị a n'ụzọ dị mfe, nke nwere ike ịkpata ihe mberede mmiri. Na mgbakwunye, RCBO nwekwara ike iji na sistemụ eletriki ụlọ ọrụ ebe nchekwa mmadụ bụ ihe dị mkpa, dị ka sekit njikwa ọkụ dị n'akụkụ, sistemụ radar, na ngwa nyocha ala.
