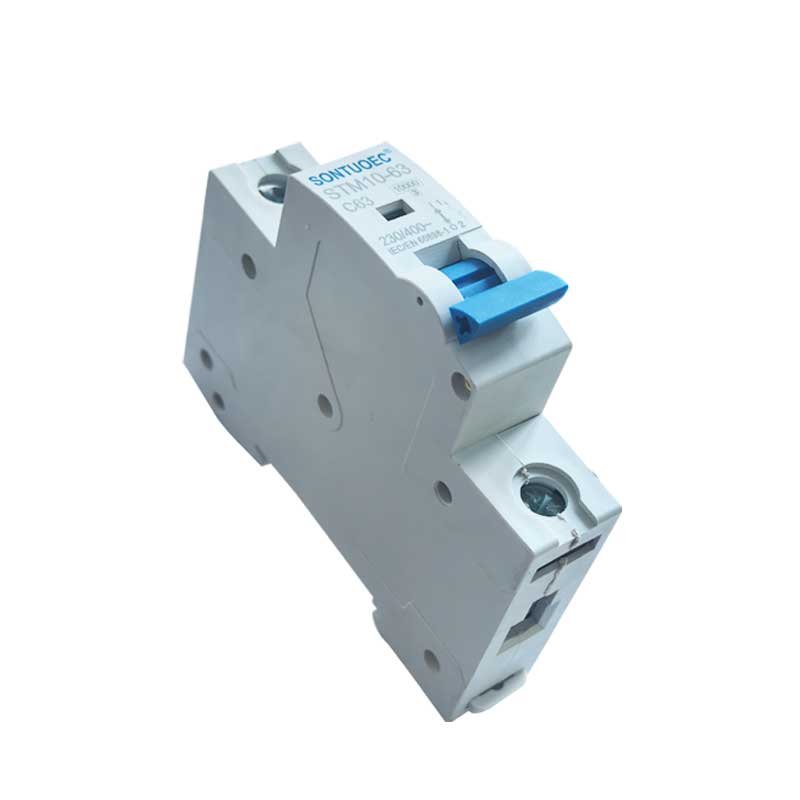

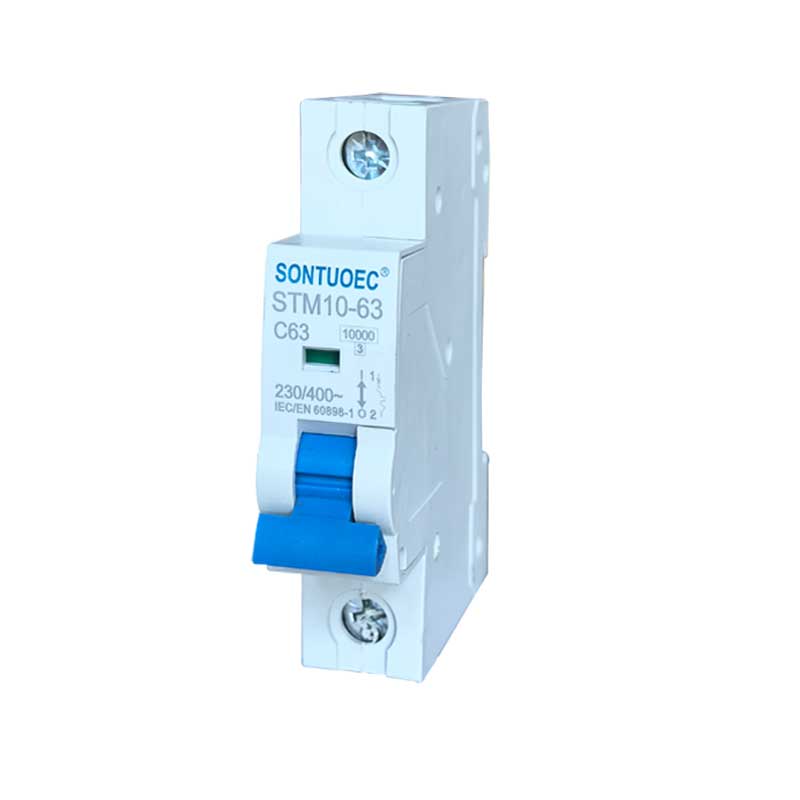

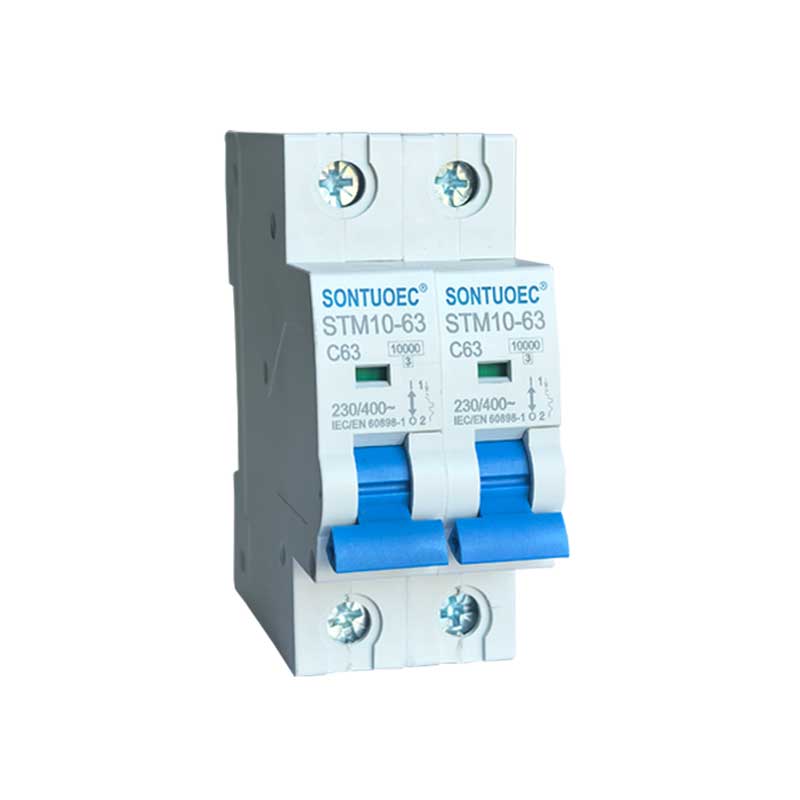

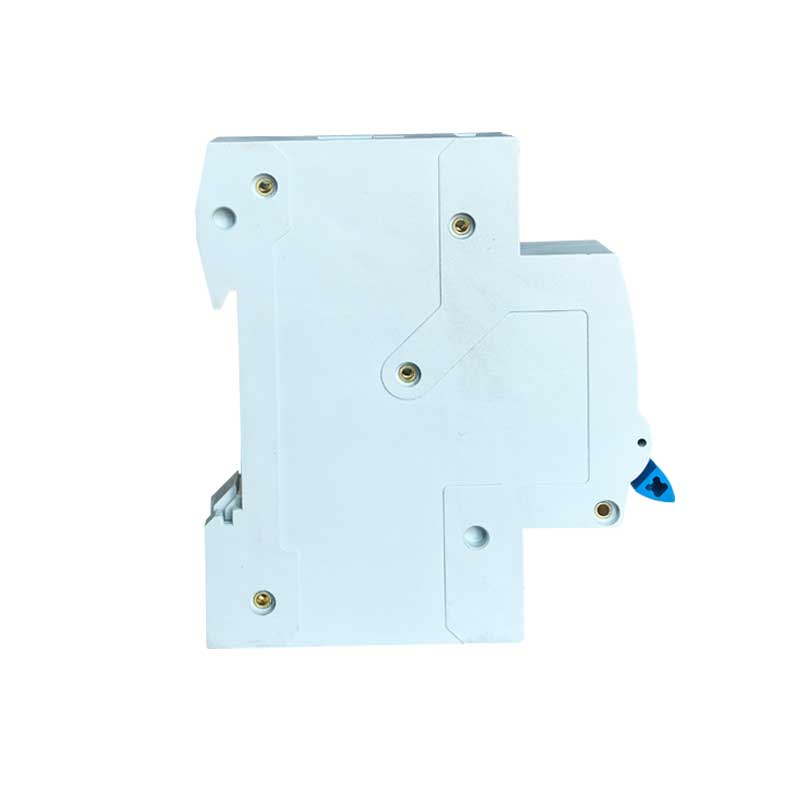

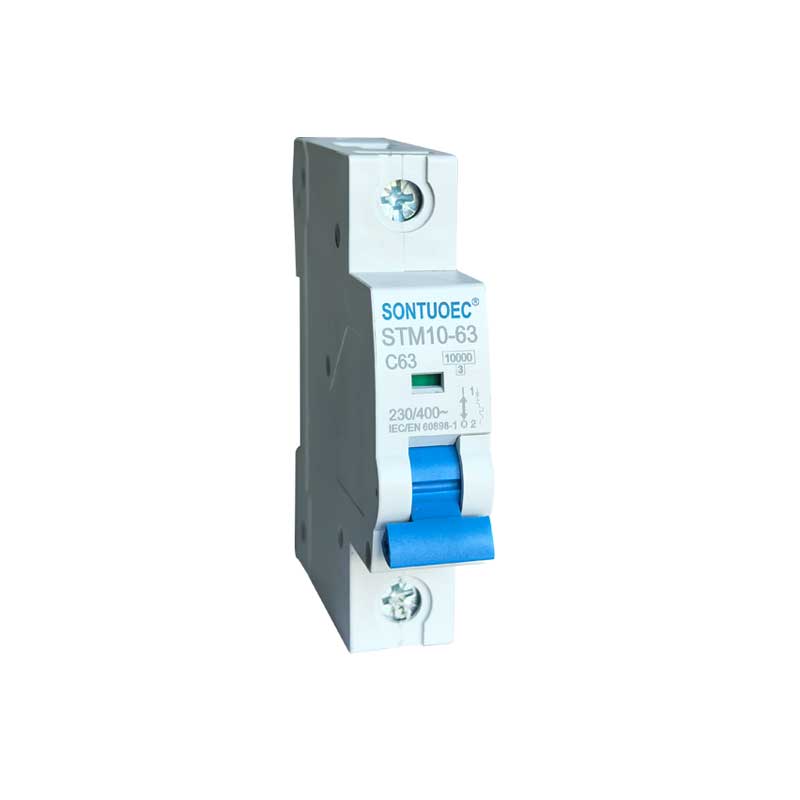

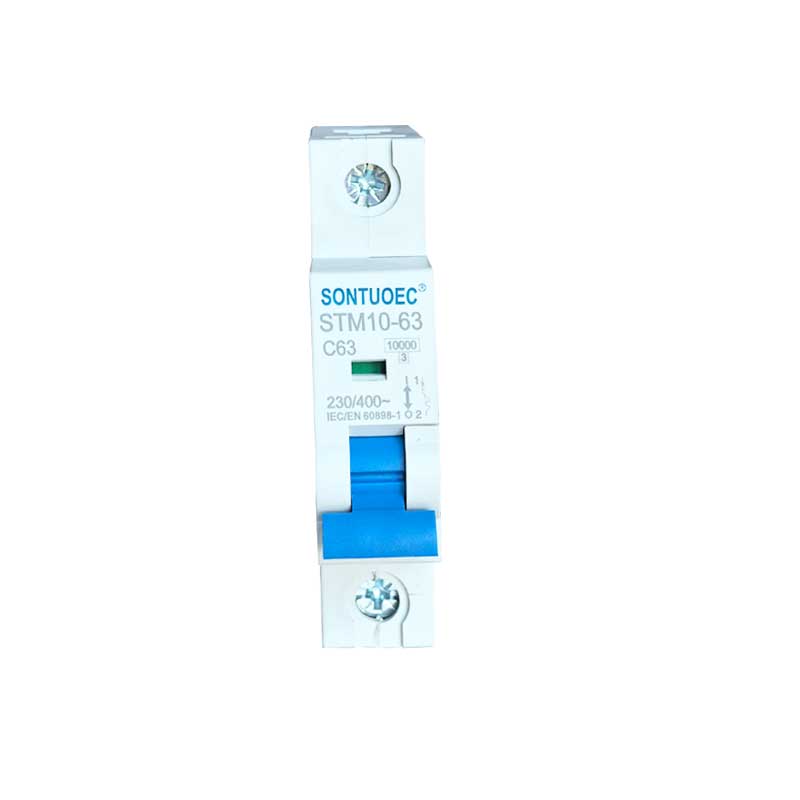

Ụlọ ọrụ Sontuoec Direct ire MCB Stm10-63 Series 6ka Miniature Circuit Breaker

SONTUOEC bụ otu n'ime ndị China suppliers / Nsukka specializing na mmepụta nke dị iche iche obere eletriki ngwa STM10-63 Series elu na-agbaji miniature sekit breaker nwere atụmatụ nke Ọdịdị elu, arụmọrụ a pụrụ ịdabere na, na-agbasa ikike elu, ọdịdị mara mma na ya shei na akụkụ na-mere nke ihe onwunwe na mmetụta na-eguzogide, ike ire ọkụ na-echebe atụmatụ. Ọ dabara na ike usoro nke 50 ma ọ bụ 60 ugboro, Ue 400V na n'okpuru, Ui 63A na n'okpuru. A na-etinye ya n'ọrụ n'ụlọ ọrụ, ebe obibi, maka ọkụ ọkụ, ikesa ike na oke ibu na nchebe nkenke nke ngwá ọrụ. Dị ka ọ na-adịkarị, enwere ike iji ya dị ka onye na-adịghị enyefe usoro ike ugboro ugboro. Ọ dabara n'ụkpụrụ IEC60898.1 na GB10963.1

Nlereanya:STM10-63

Zipu ajụjụ

Nkọwa ngwaahịa

Nkọwapụta:

	Ọkọlọtọ		IEC/EN 60898-1
Eletriki	Enyere aha ugbu a In	A	1,2,4,6,10,16,20,25,32,40,50,63A
atụmatụ	Osisi	P	1,2,3,4
	Egotara voltaji Ue	V	AC 230,400
	Voltage mkpuchi mkpuchi Ui	V	500
	Ugboro ugboro	Hz	50/60
	Enyere ikike imebi	A	3000, 4500, 6000
	Enyere mkpali na-eguzogide voltaji (1.2/50)Uimp	V	4000
	Dielectric test voltaji na ind.Freq.maka 1 min	Kv	2
	ogo mmetọ		2
	Njirimara ntọhapụ Thermo-magnetic		B,C,D
Mechanical	Ndụ eletrik	t	4000
atụmatụ	Ndụ mechanical	t	10000
	ogo nchedo		IP20
	Ọnọdụ ntụaka maka ịtọ	ºC	30
	nke thermal element	ºC	30
	Ọnọdụ okpomọkụ	ºC	-5 ~ + 40 (ngwa pụrụ iche biko rụtụ aka
	(na nkezi kwa ụbọchị ≤35ºC)	ºC	nkwụghachi ụgwọ okpomọkụ)
	Ọnọdụ nchekwa	ºC	-25-70
Nwụnye	Ụdị njikọ ọnụ		Igwe bọs ụdị eriri USB/Pin
	Nha ọdụ elu/ala maka eriri	mm2	25
	Nha ọdụ elu/ala maka eriri	AWG	3月18日
	Nha therminal n'elu/n'ala maka bọsbar	mm2	25
	Nha therminal n'elu/n'ala maka bọsbar	AWG	3月18日
	torque na-agbatị	N*m	2
	torque na-agbatị	Na-lbs	18
	Ịkwanye		na DIN rail EN 60715 (35mm) site na ngwa ngwa ngwa ngwa ngwa
	Njikọ		Site na elu na ala

Isi ọrụ nke STM10-63 Miniature Circuit Breaker

1.Overload Protection: Mgbe ihe dị ugbu a na sekit karịrị ọnụ ahịa nke MCB, STM10-63 Miniature Circuit Breaker ga-ebipụ sekit na-akpaghị aka n'ime oge a kapịrị ọnụ iji gbochie sekit na akụrụngwa site na ikpo ọkụ.

2.Short-circuit nchebe: Mgbe obere oge na-eme na sekit, STM10-63 Miniature Circuit Breaker ga-ebipụ sekit ozugbo iji gbochie obere oge nke ugbu a imebi sekit na akụrụngwa.

3.Leakage nchedo (ụfọdụ MCB nwere ọrụ a): maka MCB nwere nchebe ntanye, mgbe enwere mmiri na sekit, STM10-63 Miniature Circuit Breaker ga-ebipụ ngwa ngwa sekit iji chebe nchekwa onwe onye.

Ụkpụrụ ọrụ nke MCBs

MCB na-enwekarị ihe magnetik thermal ma ọ bụ eletrọnịkị ihe nchọpụta njem n'ime, nke a na-eji achọpụta mgbanwe dị ugbu a na sekit. Mgbe nke ugbu a bụ ihe na-adịghị mma, onye na-eti ihe na-ebute usoro nkwụsị nke MCB, na-eme ka STB1-63 Miniature Circuit Breakerto na-ebipụ ngwa ngwa.

1.Thermal magnetik striker: Ọ utilizes okpomọkụ eme mgbe nke ugbu a na-agafe na-eduzi ịkpalite tripping. Mgbe ihe dị ugbu a buru ibu, onye na-eduzi ahụ na-ekpo ọkụ, na-eme ka bimetal dị n'ime ikuku magnetik na-ehulata, si otú a na-ebute usoro nkwụsị.

2.Electronic striker: Ọ na-eji ihe elektrọn eme ihe iji chọpụta mgbanwe dị ugbu a ma na-achịkwa ọrụ nke usoro nkwụsị. Mgbe achọpụtara ihe dị ugbu a na-adịghị mma, onye na-eti ihe eletrọnịkị na-eziga ozi na usoro nkwụsị iji bepụ sekit.

Ihe ngosi ngwa nke MCB

A na-eji MCB eme ihe na sistemụ eletriki n'ime ebe obibi, azụmahịa na ụlọ ọrụ mmepụta ihe iji kpuchido sekit na akụrụngwa site na mmebi nke ikuku na-adịghị mma kpatara. A na-etinyekarị ha na igbe nkesa, bọọdụ mgba ọkụ ma ọ bụ ebe a na-achịkwa ma na-eji ya dị ka isi ngbanwe ma ọ bụ alaka ụlọ ọrụ nke sekit.

Nhọrọ na ntinye nke MCB

1.Selection: Mgbe ị na-ahọrọ MCB, ị kwesịrị ịtụle ihe ndị dị ka akara nke ugbu a nke sekit, ọkwa voltaji, àgwà nchebe, na ma ọ dị mkpa ka nchebe nkwụsị. Ọ dịkwa mkpa ịhụ na STB1-63 Miniature Circuit Breaker ahọpụtara kwekọrọ n'ụkpụrụ na ụkpụrụ nchekwa nchekwa eletriki mpaghara.

2.Installation: STB1-63 Miniature Circuit Breakers kwesịrị itinye ya na ebe akọrọ, ikuku ikuku na-enweghị gas na-emebi emebi ma hụ na a na-agbanye ya nke ọma na nchekwa. N'oge echichi, ekwesịrị ịhụ ụkpụrụ nchekwa eletrik dị mkpa na usoro arụ ọrụ.
