Ndị na-eme ihe nkiri stmp1

Stm1 kpụọ okwu sekit, MCCB, a bụ ihe na-emebi emebi. Ọ bụ ngwaọrụ nchekwa eletriki nwere oke nchekwa, nke na-eme ihe na-enweghị atụ, ebe a na-eme ihe na-ekenye ihe dị mkpa dị ka oke igwe eletriki dị mkpa, mkpụmkpụ sekit, na nchekwa na-enweghị isi. Site na nghọta ya, njirimara ya, ihe ngosi ngwa, na usoro nrụnye, ị nwere ike iji ma mee ka ọ bụrụ ihe ndị na-emebi ihe na-ahụ maka sistemụ eletriki.

Nlereanya:STM1-250

Zipu ajụjụ

Nkọwa ngwaahịa

Nkowa

Udi	Kpoo ugbua (lnm)	Dị ugbu a (a)	Na-arụ ọrụ ọkụ eletrik (v)	Igwe mkpuchi mkpuchi	A na - egbochi igbochi mmebi iwu dị mkpirikpi ka 400v	Ikike ndị na-emebi ihe na-enweghị ike	Ihe ndeputa			Arigo uzo

							L	W 3p / 4P	H	A	B	4-φd
Stm1-63 l	63	(6), 10,16,20,20,32, 40,50,63	AC 400v	500v	25	18	135	78	73.5	25	117	Φ3.5
Stm1-63 m					50	35	135	78/103	81.5
Strm1-100l	100	(10), 16,20,25,32,40, 50,63,80,100	AC 400v	500v	35	35	150	92	68	30	129	Φ4.5
Stm1-100m					50	50	150	92/1/122	86
Stm1-100 h					85	85
Stm1-160 l.	160	100,125,140,160	AC 400v	690V	35	35	165	107	86	35	126	Φ4.5
Stm1-160m					50	50	165	107/142	103
Strm1-160h					85	85
Stm1-225l	225	100,125,140,160,180, 200,225	AC 400v	690V	35	22	165	107	86	35	126	Φ4.5
Stm1-225m					50	35	165	107/142	103
Stm1-225h					85	50
Stm1-400l	400	225,250,315,350, 400	AC 400v	690V	42	35	257	150/198	105	44	194	Φ7
Stmp1m					65	50	257	150/198	105	44	194	Φ7
Stmp1-400h					100	65
Stm1-630l	630	400,500,630	AC 400v	690V	42	35	270	182/240	110	58	200	Φ7
Stm1-630m					65	50	270	182	110	58	200	Φ7
Stm1-630h					100	65
Stm1-800m	800	630,700,800	AC 400v	690V	75	50	275	210	103	70	243	Φ7
Stm1-800h					100	65

Isi ọrụ nke Stm1 Kwuputara ikpe sekit

Nchedo karịrị nke ugbu a na sekit dị ugbu a karịrị uru sekit nke Stm1 kpụpụrụ sekit na akpaghị aka, ọ ga-esi na ya na-egbochi sekit na akụrụngwa.

Nchekwa sekit dị mkpirikpi: Mgbe a dị mkpirikpi na-apụta na sekit, ndị na-emebi ihe nkiri StM1 ga-ebipụ sekit dị ka sekit dị ugbu a site na ịkpakọ sekit na akụrụngwa.

Igwefoto na-enye nsogbu (ụfọdụ ihe na-enye ọkụ eletrik ka ọ bụrụ ọrụ a) na-egbochi sekit iji gbochie sekit na-emebi emebi ma ọ bụ na-arụ ọrụ n'okpuru voltaji dị ala.

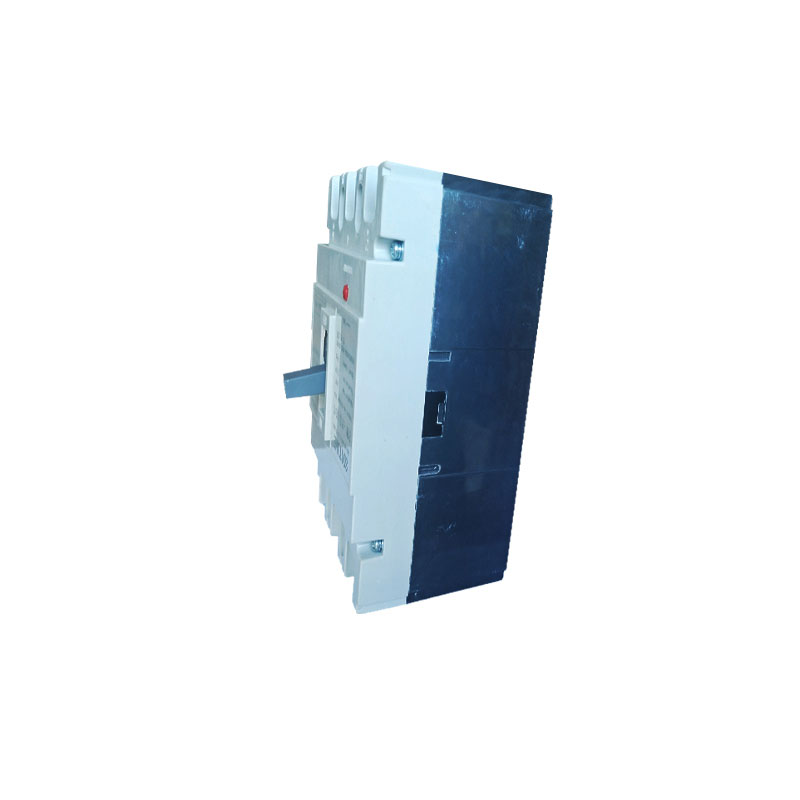

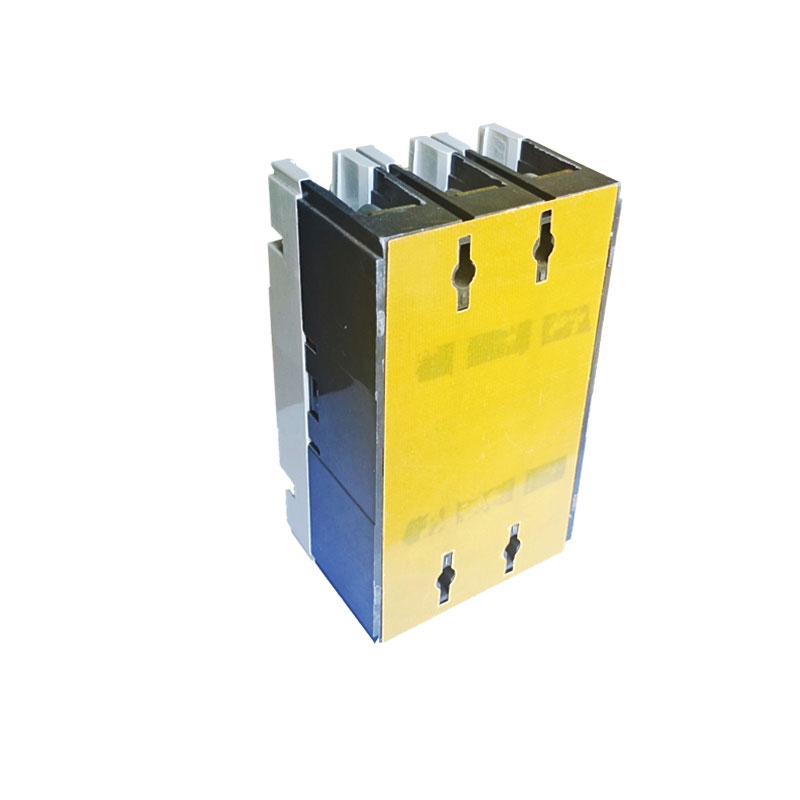

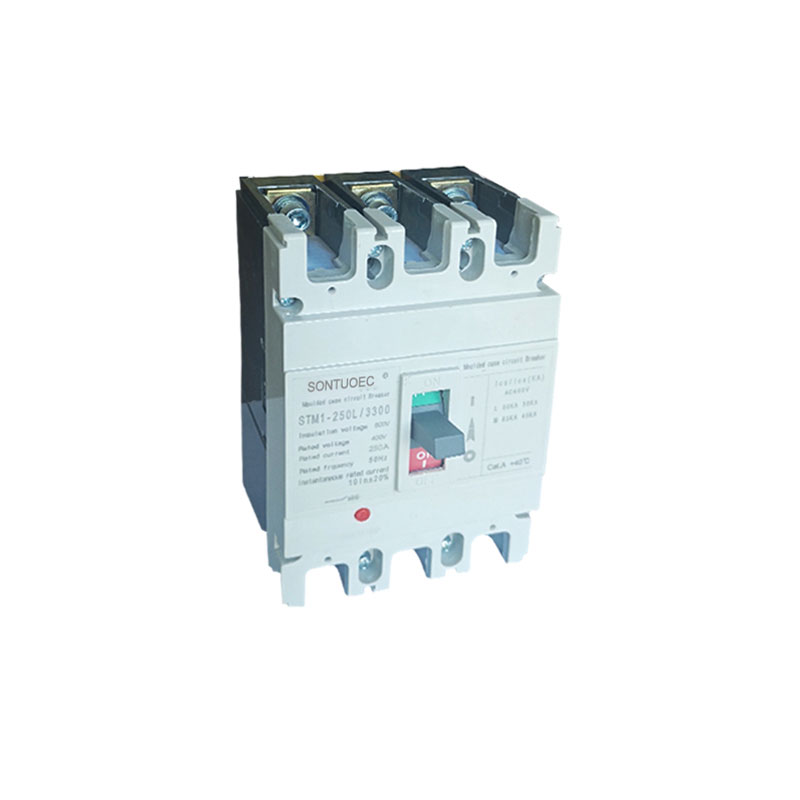

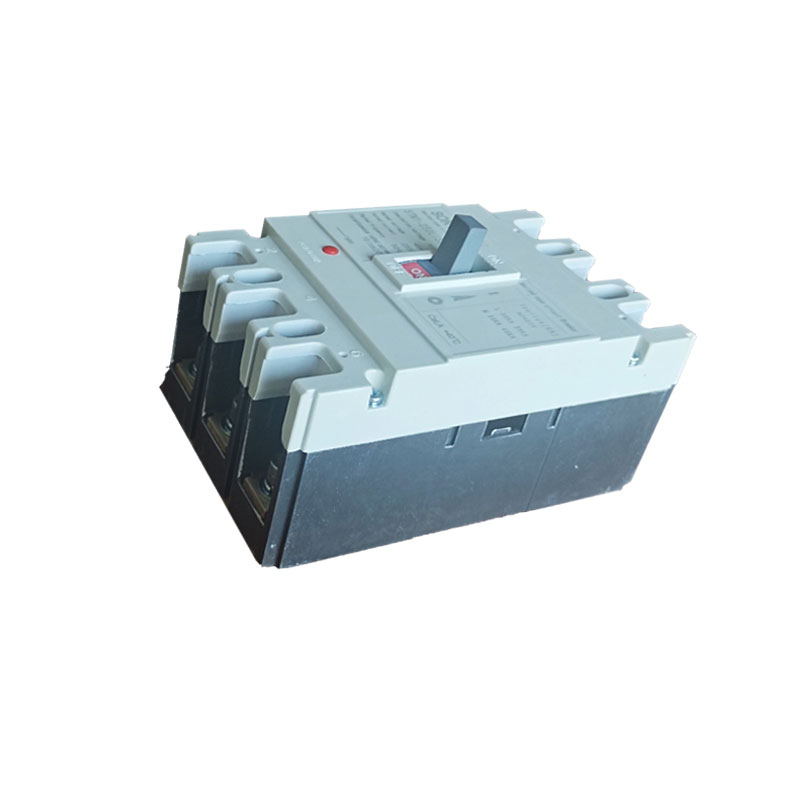

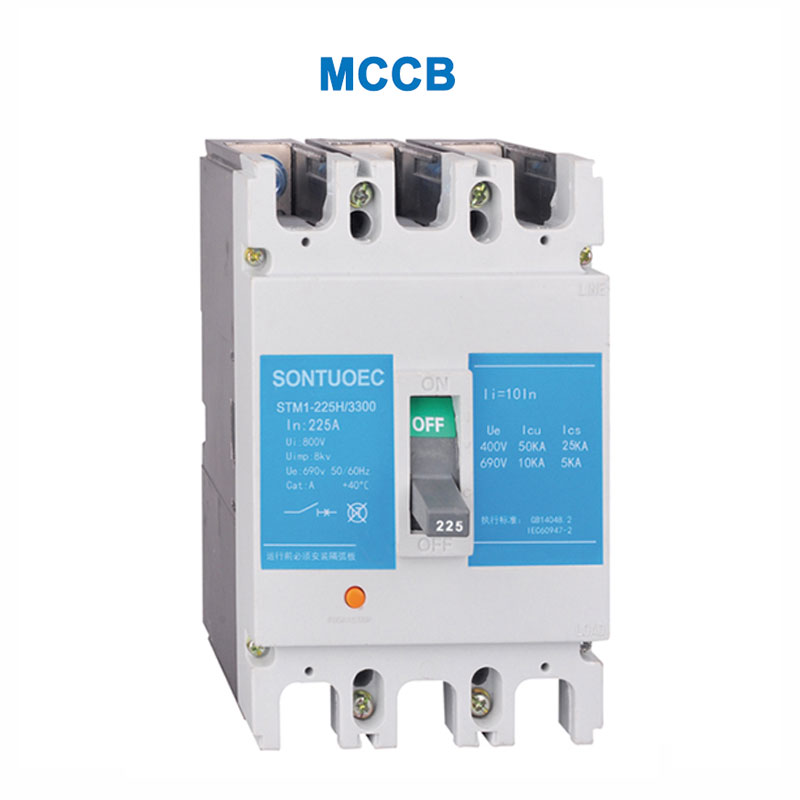

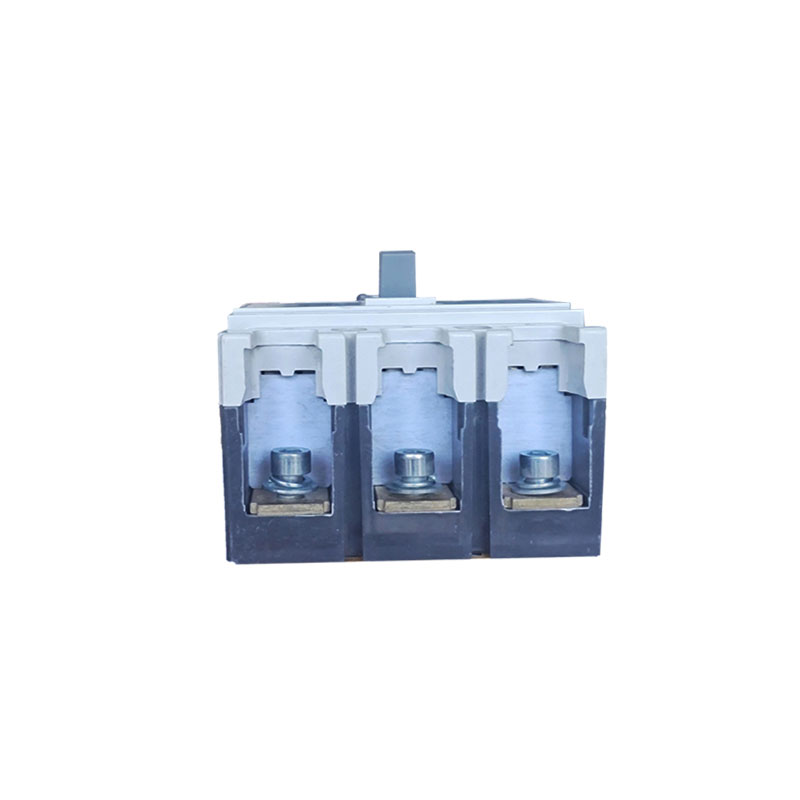

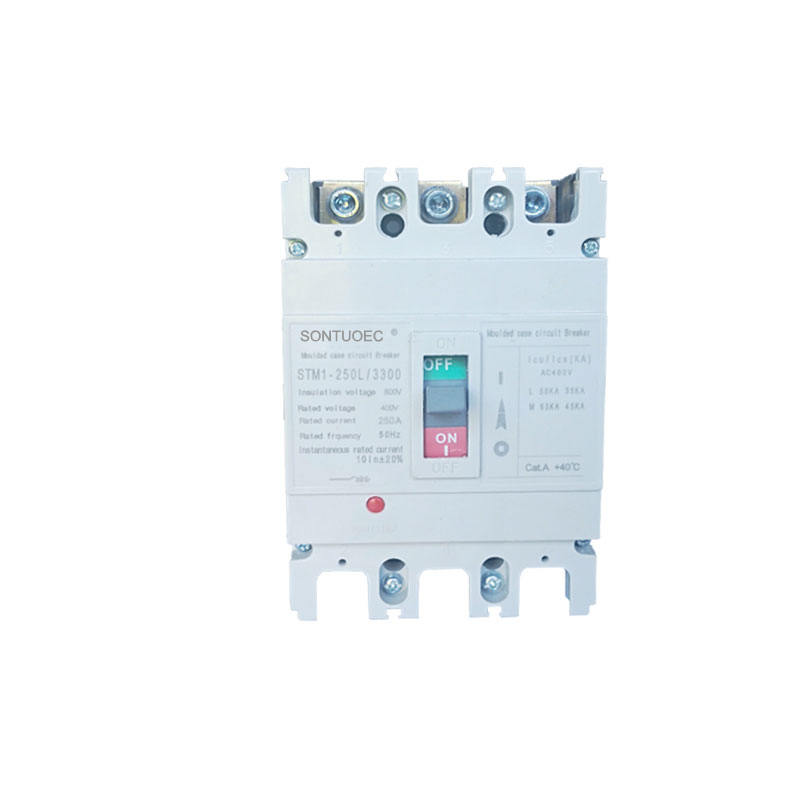

STM1 Molded Case Circuit Breakers

Ụkpụrụ ọrụ nke ọrụ nke stm1 kpụgharịrị sekit sekit

Ndị na-ahụ maka circit na-eme ka ihe ndị na-egbu maramara nke ime ma ọ bụ eletrik na-agagharị na-achọpụta mgbanwe dị ugbu a na volkit. Mgbe ugbu a ma ọ bụ voltaji na-adịghị mma, onye na-ese ihe na-eme ka usoro ịmịnye na-eme ihe nke ndị ọgba aghara nke Stm1 kpụpụrụ ya iji bipu sekit ngwa ngwa.

1.Thermal ndọta: ọ na-eji ọkụ ahụ emepụta mgbe ugbu a gafere onye na-eduzi ya iji kpalite njem. Mgbe onye dị ugbu a dị elu, onye na-eduzi ya na-ekpo ọkụ, na-eme ka bimmetal n'ime ikuku na-apụta, si otú a na-akpalite usoro njem.

2.Electronic onye na - agba bọọlụ: ọ na - eji ngwa eletriki iji chọpụta mgbanwe na ugbu a na voltaji ma jikwaa ọrụ nke usoro njem. Mgbe achọpụtara na-enweghị atụ, ndị na-ahụ anya elektrọnik na-eziga akara na usoro ịmị mmiri iji kwụsị sekit.

Njirimara nke StM1 Kwuputara ikpe sekit

Ikike igbuji: Ndị na-ahụ maka sekit na-ewepụta ikike sekit dị mkpụmkpụ, nke nwere ike ibipụ sekit mgbe ọ dị mkpụmkpụ ma na-echebe nchekwa nke sekit na akụrụngwa.

Ọtụtụ ọrụ nchebe: na mgbakwunye na ọrụ nchebe nchebe na ọrụ nchedo na-enweghị isi, ụfọdụ StM1 kpụrụ ikpe sekit na-enwekwa ọrụ ndị ọzọ dị ka nchedo nsogbu na nchekwa mgbasa.

Ọ dị mfe iji wụnye na ijide: StM1 Ozo ikpe sekit na-ejikarị ihe eji eme ihe, nke dị mfe iji wụnye ma na-elekọta, ma dịkwa mma maka usoro nkesa ike dị iche iche.

Inwe ntụkwasị obi dị elu: Stm1 kpụgharịrị nke StM1 na-anwale nke siri ike ma sie ike iji nweta ntụkwasị obi dị elu na nkwụsi ike nke sistemụ eletriki.

Ihe nlere nke STM1 Kwuputara ikpe sekit

A na-eji ọgbaghara sekit StM1 kpụrụ ihe n'ọtụtụ ebe na ọrụ nkesa ike, azụmahịa na mpaghara na ebe obibi dị ka ọ bụ isi mmalite ma ọ bụ nke sekit. A na-arụnyekarị ha na igbe ekewasị, ebe a na-ekesa ma ọ bụ ebe a na-achịkwa iji chebe sekit na akụrụngwa site na mmebi nke ihe ndị na-adịghị na ya na voltaji.
