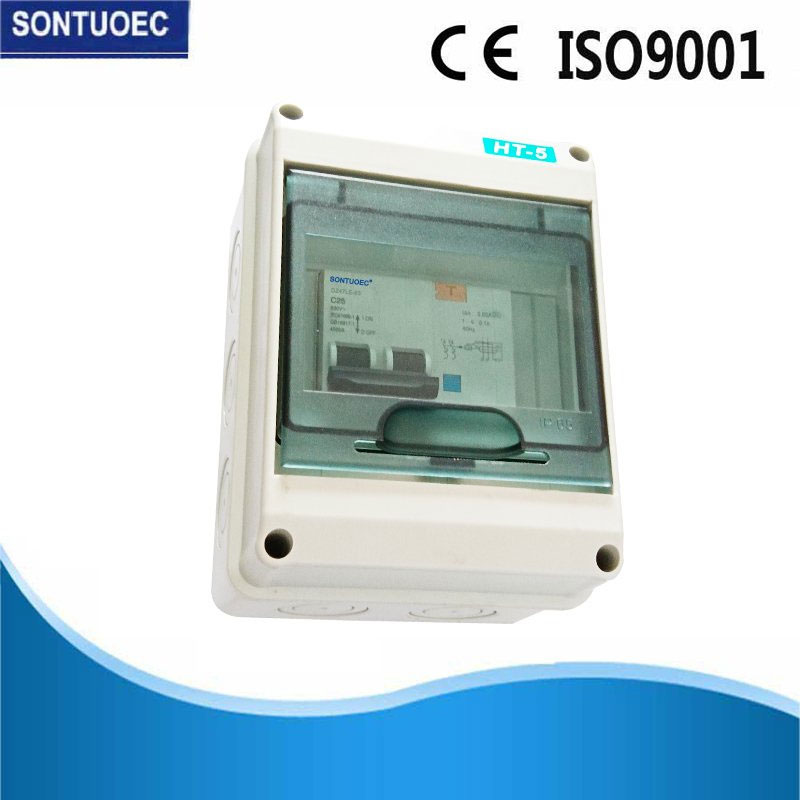

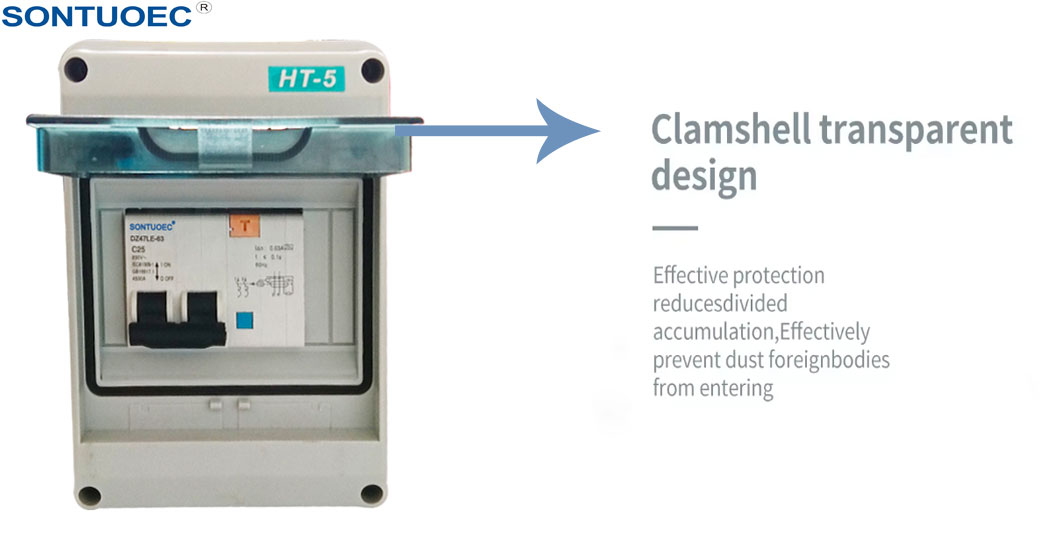

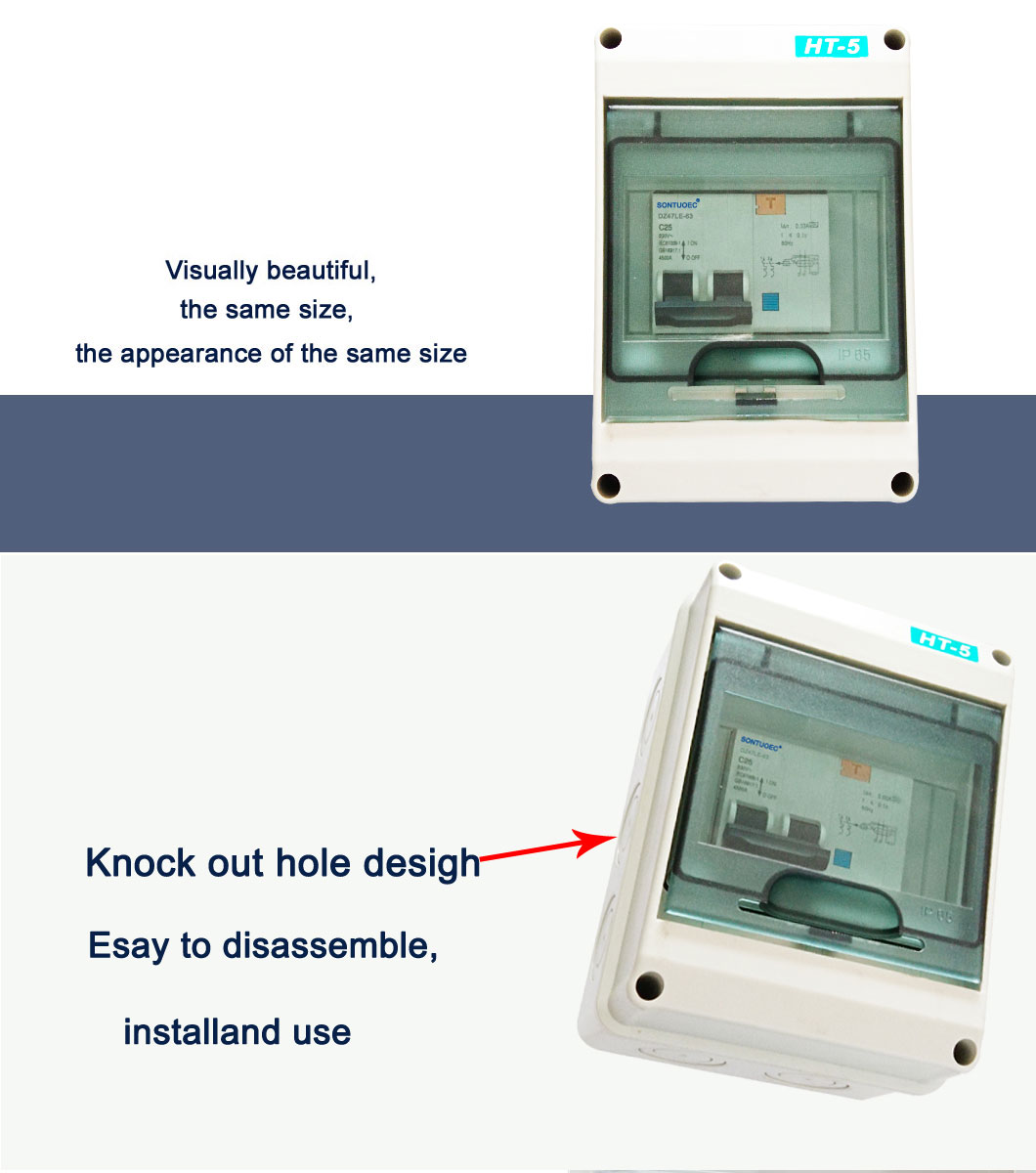

Dz47le-63 Series ịdị n'otu Ọdịdị Size Circuit Breaker RCBO

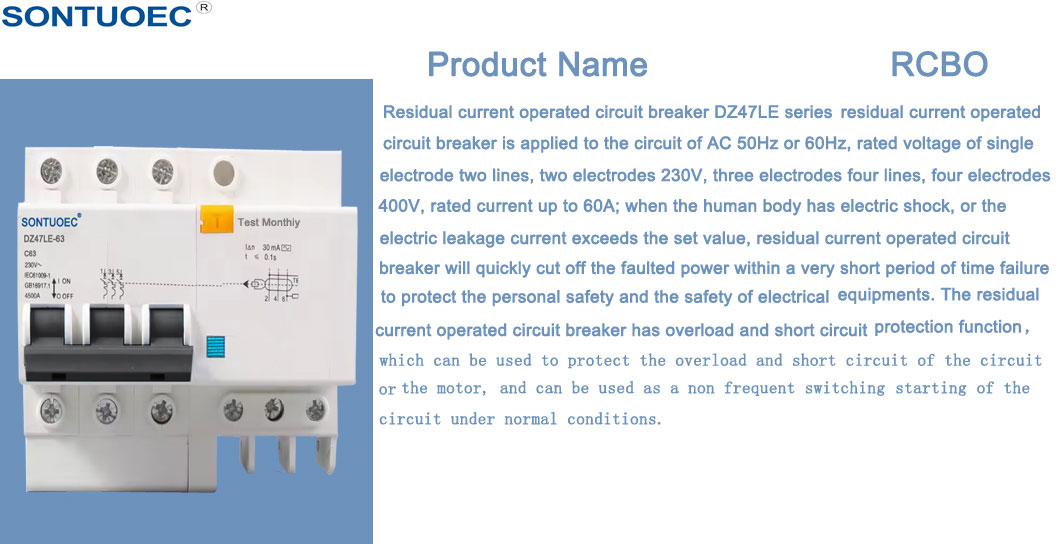

1.RCBO bụ nke a na-eji na AC 50Hz(60Hz), voltaji agbagoro 230/400V, gosiri 6A ugbu a ruo 63A sistemụ nkesa ọkụ dị ala. RCBO nhata na ọrụ MCB+RCD; A na-eji ya maka nchebe ujo ọkụ eletrik na nchedo kọntaktị mmadụ na-apụtachaghị ìhè, nchekwa akụrụngwa eletriki mgbe ahụ mmadụ na-emetụ ọkụ eletrik ma ọ bụ netwọọkụ eletriki ugbu a karịa uru enyere ya, yana n'elu ibu na nchedo sekit dị mkpụmkpụ; Ọ nwekwara ike ịbụ onye na-arụ ọrụ na sekit, nke a na-ejikarị eme ihe na ebe obibi na azụmahịa. Ọ na-akwado ọkọlọtọ IEC61009-1. 2.MCB a na-eji na AC50/60Hz, gosiri voltaji nke 230V3, 4 okporo osisi 400V, gosiri ugbu a ka 63A maka ibufe ibu na mkpụmkpụ-circuit nchebe nakwa maka mgbe ọ bụla mgbanwe n'okpuru nkịtị case.A na-eji ọtụtụ maka ụlọ ọrụ, azụmahịa na ezinụlọ. Ngwaahịa a kwekọrọ ọkọlọtọ IEC60898. 3.RCCB bụ na conformity na ụkpụrụ nke IEC61008.It nwere ike ebipụ mmejọ circuit ozugbo na oge nke ujo ize ndụ ma ọ bụ ụwa ntapu nke trunkline.Thus ọ bụ adabara iji zere ujo ize ndụ na ọkụ kpatara ụwa leakage.It nwere ike ji mee ihe na sekit ruo otu nkeji 240V, atọ, nkeji 5.0Hz ma ọ bụ 415 .

Nlereanya:DZ47LE-63

Zipu ajụjụ

Nkọwa ngwaahịa

Nkọwapụta:

RCBO

	Ọkọlọtọ	Nkeji	IEC / EN 61009-1
Eletriki	Ụdị		Ụdị eletrọnịkị
atụmatụ	Ụdị (ụdị ebili mmiri nke ntapu nke ụwa ghọtara)		A, AC
	Njirimara ntọhapụ Thermo-magnetic		B,C,D
	Enyere ugbu a ln	A	6,10,16,20,25,32,40,63
	Osisi	P	1P+N, 3P+N
	Egotara voltaji Ue	V	AC 230,400
	Egotara ezi uche I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Emebere ihe fọdụrụ na ike imebi ihe l△m	A	500
	Enyere ikike obere okirikiri Icn	A	6000
	Oge ezumike n'okpuru I△n	S	≤0.1
	Ugboro ugboro	Hz	50/60
	Enyere mkpali na-eguzogide voltaji (1.2/50)Uimp	V	4000
	Dielectric test voltaji na ind.Freq maka 1min	kV	2
	Voltage mkpuchi mkpuchi Ui	V	250
	ogo mmetọ		2
Nrụ ọrụ igwe	Ndụ eletrik		4000
	Ndụ mechanical		10000
	Ihe ngosi mmejọ ugbu a		EE
	ogo nchedo		IP20
	Ọnọdụ okpomọkụ	ºC	-5 ~ + 40 (ngwa pụrụ iche biko rụtụ aka
	(na nkezi kwa ụbọchị ≤35ºC)	ºC	nkwụghachi ụgwọ okpomọkụ)
	Ọnọdụ nchekwa	ºC	-25-70
Nwụnye	Ụdị njikọ ọnụ		Cable/Pin-ụdị bọsbar/ ụdị ụgbọ ala U-ụdị ụgbọ ala
	Ogo njedebe n'elu / ala maka eriri	mm2	25
	Ogo njedebe n'elu / ala maka eriri	AWG	5月18日
	Nha njedebe n'elu/n'ala maka ụgbọ ala ụgbọ ala	mm2	25
	Nha njedebe n'elu/n'ala maka ụgbọ ala ụgbọ ala	AWG	3月18日

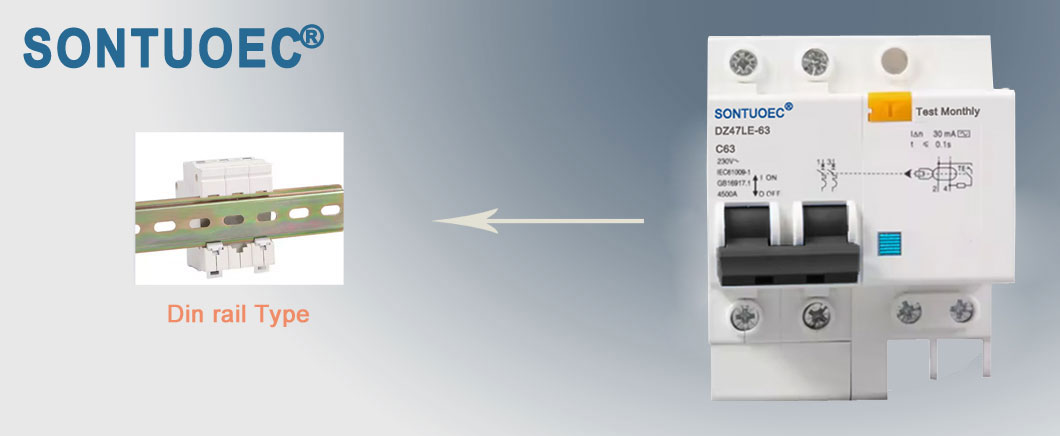

	Ịkwanye		Na DIN okporo ígwè EN 60715(35mm) site na ngwa ngwa mkpachị ngwaọrụ
	Njikọ		Site n'elu

Nleba anya roduct:

1. Na-enye nchebe megide mmebi ụwa / nkwụsị nke ugbu a na ọrụ nke iche

2. High short-circuit ugbu a na-eguzogide ikike3. Ọdabara na njikọ ọdụ ụgbọ ala na pin/ ndụdụ

5. Kwupu na sekit ahụ na-akpaghị aka mgbe nrụrụ ala/nwụpụ nke ugbu a na-apụta ma gafere mmetụta uche.

6. Na-adabere na ike ọkọnọ na akara voltaji, na free na mpụga nnyonye anya, voltaji fluctuation.

MCB

Nlereanya	MCB
Ọkọlọtọ	IEC60898-1
Osisi	1P,2P,3P,4P
Ụzọ mgbapụ	B,C,D
Enyere ikike mkpirisi okirikiri (Icn)	3KA,4.5KA,6KA,10KA
Enyere aha ugbu a(n'ime)	1,2,4,6,10,16,20,25,32,40,50,63A
Voltaji akwadoro (Un)	AC230(240)/400(415)V
Mwepụta magnetik	B: n'etiti 3 na 5 In
	B: n'etiti 3 na 5 In
	C akụkụ: n'etiti 5 na 10 In
	C akụkụ: n'etiti 5 na 10 In
	D usoro: n'etiti 10 na 14In
	D usoro: n'etiti 10 na 14In
Electro-mechanical ntachi obi	ihe karịrị 6000 cyclesC

RCCB


	Ọkọlọtọ	Nkeji	IEC / EN 61008-1
Eletriki	Ụdị (ụdị ebili mmiri nke ntapu nke ụwa ghọtara)		AC, A
Njirimara	Enyere aha ugbu a In	A	16,25,32,40,63
	Osisi	P	2,4
	Egotara voltaji Ue	V	230/400
	Enwere mmetụta uche I n	A	0.01,0.03,0.1,0.3
	Voltage mkpuchi mkpuchi Ui	V	500
	Enyere mpụta ime na	A	630
	agbaji ike m
	Oge mkpirisi okirikiri I c	A	4500/6000
	SCPD fuse	A	6000
	Oge ezumike n'okpuru I n	s	<0.1
	Ugboro ugboro	Hz	50/60
	ogo mmetọ		2
MechanicaI	Ndụ eletrik	t	4000
atụmatụ	MechanicaI Iife	t	20000
	Ihe ngosi mmejọ ugbu a		Ee
	ogo nchedo		IP20
	Ọnọdụ okpomọkụ	C	Site na -25C ruo 40C
	(na nkezi 35 kwa ụbọchị)
	Ọnọdụ nchekwa	C	Site na -25C ruo 70C
